FW-1

QED FLUID WARMING CABINETS
Product Code: FW

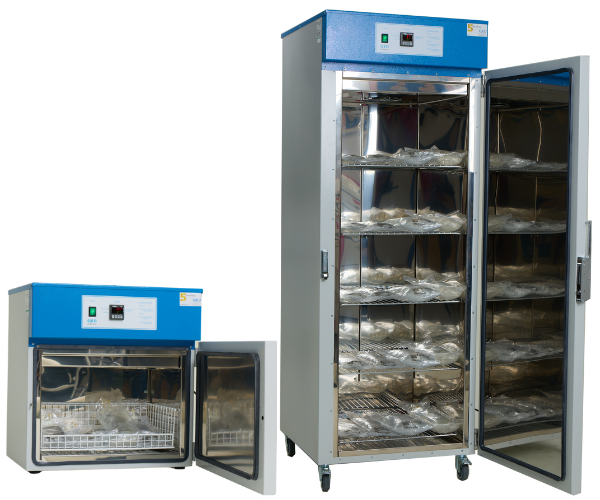

A selection of fluid warming cabinets in a range of sizes to suit your needs.

Areas of Use: Birth Environments, Postnatal, Neonatal, Operating Theatre Recovery, Critical Care, A&E and other hospital wards where access to warm saline and other fluids is important.

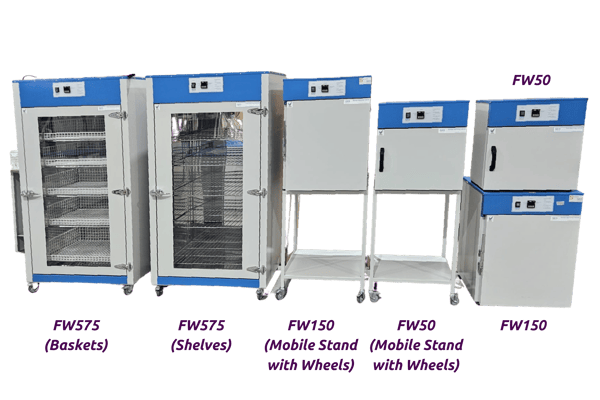

SIZE OPTIONS

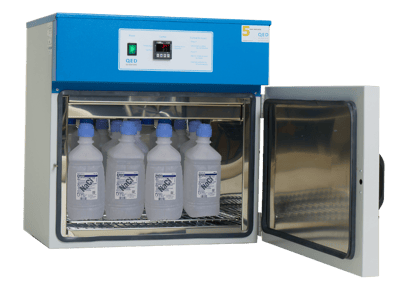

The QED Fluid Warmers are available in a range of sizes accommodating 9 to 240 one litre bottles of fluid.

Smaller cabinets are designed to fit underneath or on top of work surfaces.  Larger cabinets are equipped with wheels for ease of movement.

QED cabinets are manufactured here in the UK and bespoke sizes are available should you need something specific.

WC FW50

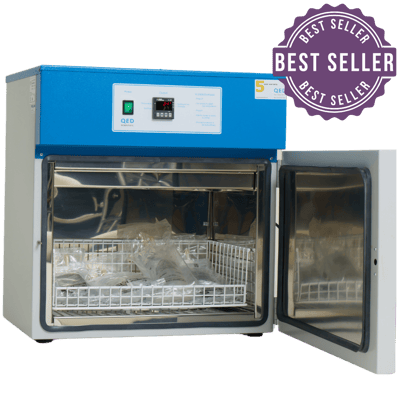

FW50-ECO

One of the smaller cabinets in the QED range.
It features one shelf to store fluid.

670mm(H) x 415mm(W) x 422mm(D)

WC inside

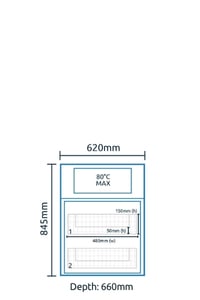

FW150-ECO

A medium-sized cabinet.
It features two shelves to store fluid.

845mm(H) x 620mm(W) x 660mm(D)

WC fluid large

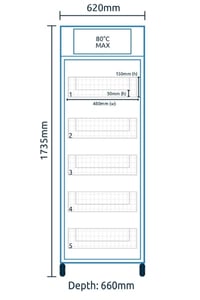

FW355-ECO/WH

One of the largest cabinets in the QED range.
It features five shelves to store fluid.

1735mm(H) x 620mm(W) x 660mm(D)

TEMPERATURE CONTROL

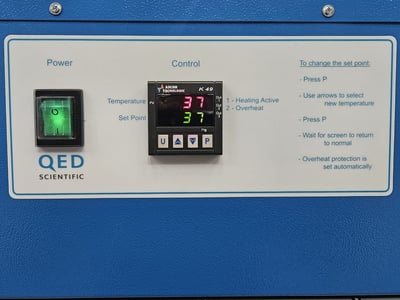

All QED Warming Cabinets are equipped with PID digital temperature controls.

Fluid warmers have a maximum temperature of 60oC but can be set to any other desired temperature.

A warning indicator light will illuminate if the set temperature is exceeded by 2o.  The unit will automatically shut off if overheating continues.

BW Alarm-1
FW Digital Display 60degrees

OPTIMISED FOR WARMTH

The quiet internal fan ensures even warm air distribution around the chamber and delivers rapid heat recovery after door opening.

The reflective stainless steel interior evenly distributes heat to keep blankets warmer for longer.

FW-2
BW Warranty

QUALITY & WARRANTY

All QED Warming Cabinets are supplied with our industry-leading five-year warranty.

Spare parts and labour are included for the first year.  Spare parts are supplied for the full 5-year period to reduce maintenance costs.

QED Warming Cabinets have been supplied to the NHS for over 27 years and their designs have evolved to guarantee reliability and performance.

QED cabinets are installed in numerous NHS, private and international hospitals.


EASY CLEANING

Each cabinet is fitted with a stainless steel interior for easy cleaning.

The stainless steel interior and powder-coated exterior are compatible with hospital-approved wipes and chlorine-based cleaning solutions.

Click below for more information on cleaning:



WC specifications

SPECIFICATIONS

FW-2

The standard specification for all QED Fluid Warming Cabinets includes:

  • Shelves
  • Digital display
  • Exact temperature setting
  • Emergency shut-off

Click below to find the full list of specifications:

STANDARD SIZE OPTIONS

The table below details our comprehensive range of available sizes.  If you need something specific though, please just let us know.  As a UK-based manufacturer, we can produce bespoke cabinets to your exact requirements.

Fluid Warming Cabinets

Model Bottles
(1L)		 Bottles
(2L)		 Bottles
(3L)		 Shelves

External
H x W x D (MM)

 Empty Weight
(KG)		 Full Weight
(KG)

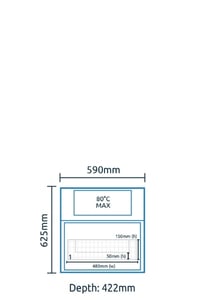

FW40-ECO 9 6 0 1 670 x 415 x 422 25 34
FW50-ECO 15 9 4 1 670 x 415 x 422 30 45
FW52-ECO/WALL 10 8 2 2 845 x 590 x 300 35 55

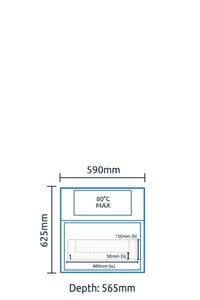

FW75-ECO 25 15 4 1 625 x 590 x 565 35 60
FW120-ECO 30 18 4 1 735 x 590 x 660 45 75
FW130-ECO 50 24 8 2 845 x 620 x 570 45 95
FW130-2B-ECO 32 24 8 2 baskets 845 x 620 x 570 50 100
FW150-ECO 60 30 12 2 845 x 620 x 660

50

110
FW210-ECO 70 36 18 2  957 x 650 x 750

65

135

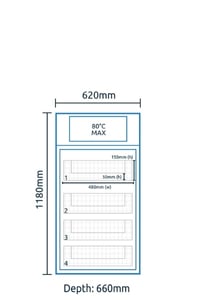

FW240-ECO 90 45 24 3  1180 x 620 x 660

73

163
FW280-ECO/WH 98 48 32 2 940 x 780 x 780

78

176
FW340-ECO/WH 144 80 40 4 1485 x 730 x 660

95

239
FW350-ECO/WH 147 72 48 3 1105 x 780 x 780

95

242
FW355-ECO/WH 150 90 40 5 1735 x 620 x 660

95

245
FW420-ECO/WH 192 100 48 4 1500 x 870 x 650

125

317
FW440-ECO/WH 180 100 50 5 1735 x 730 x 660

105

285

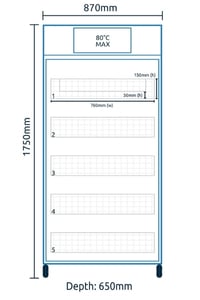

FW575-ECO/WH 240 125 50 5 1750 x 870 x 650

135

375



OPTIONAL EXTRAS

QED Fluid Warming Cabinets can include the following optional extras upon request:

Optional Extra Product Code

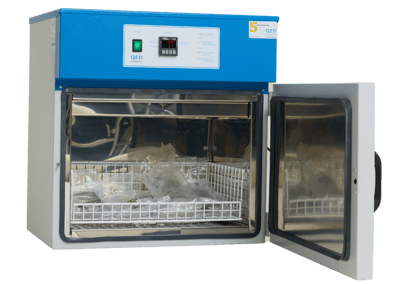

Baskets for storing fluid bags BASK-XX/440/575
Lever locking handle (Models FW130 and larger include this as standard) LATCH

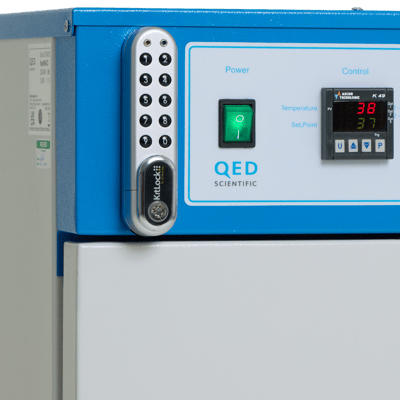

Digital door lock DIG-DL

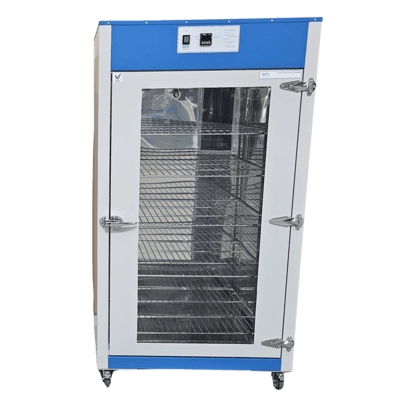

Glazed door viewing panel DGW-1/2/3/4/5/6

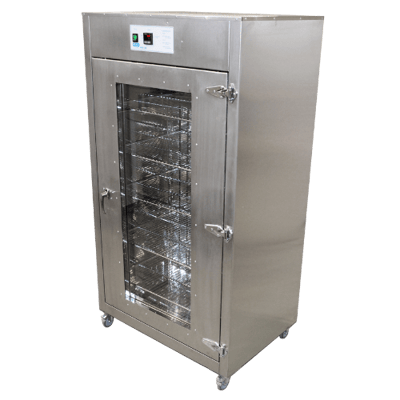

Stainless steel exterior SS

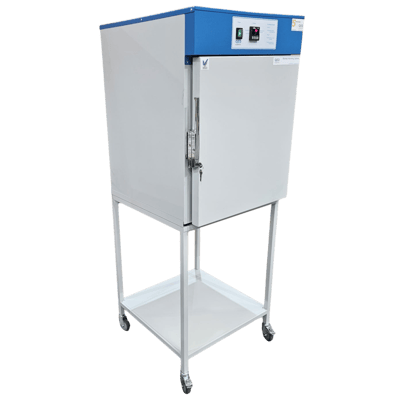

Mobile stand (For models FW40 - FW350, excluding FW52 & FW340) ST1/2/3/4
Lockable wheels (Models FW340 and larger include this as standard) WH
Audible overheat alarm AUD
Wall mounting (For FW40 & FW50. FW52/WALL is wall mounted only.) WKIT



QED WARMING CABINET RANGE

The QED Warming Cabinet range includes Blanket Warmers, Fluid Warmers and Combi Warmers.

 You can view our range of Fluid Warmers below and if you’d like a solution for blankets and fluids, view our range of Combi Warmers.



WC blanket

Blanket Warmers

Designed for warming blankets which can prevent newborn hypothermia.
Comes with baskets as standard.

FW-1

Fluid Warmers

Designed for warming saline or other fluids.
Comes with trays as standard with an option for baskets.

WC combi high res

Combi Warmers

A combination of a QED Fluid Warming Cabinet and a QED Blanket Warming Cabinet to cover all your warming needs.
