The Safewarm Patient Warming System delivers regulated heat so patients body temperature is maintained and comfortable during surgeries, reducing risks of hypothermia.
Both the Safewarm Mattresses and Safewarm Blankets can be used with the W-1000 Control Unit, which features three channels to power multiple pads at the same time.
SAFE, EFFICIENT HEATING
The Safewarm product range boasts efficient and intuitive conductive heating, ensuring the patient's body temperature is effectively regulated.
OPTIMAL WARMING
The Safewarm warming pads can reach 37°C in just 5-7 minutes, offering fast and reliable warming.
PRECISION HEATING
For enhanced flexibility and accuracy, temperatures can be controlled in increments of 0.1°C.
SAFETY CUT-OFF
If the warming pad reached a temperature of 40°C, it will automatically cut-off heat thanks to built-in sensors designed to stop overheating.

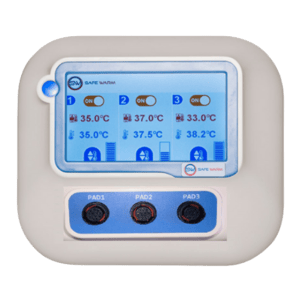

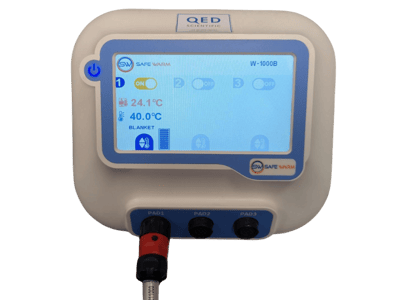

MULTI-CHANNEL CONTROL PANEL
The W-1000 control unit for the Safewarm Patient Warming System features three channels as standard, allowing you to power up to three Safewarm Mattresses and/or Blankets consecutively.
Not only does this offer enhanced flexibility over patient warming configurations, based on individual patient's needs, but it also optimises space and efficiency when using multiple warming pads by not having to place and operate separate control units.

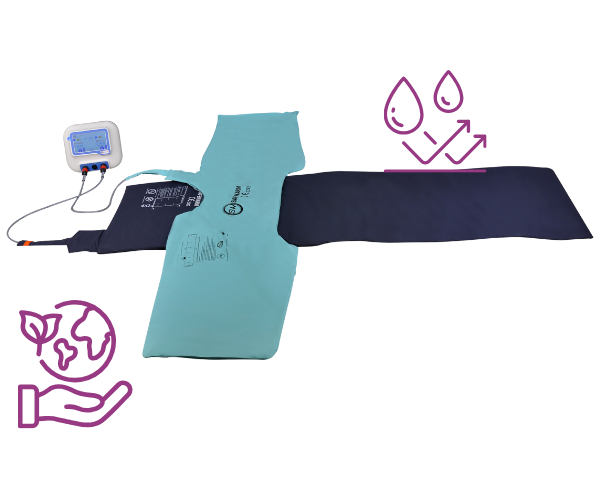

SUSTAINABLE SOLUTION
The Safewarm Patient Warming System offers a reusable, eco-friendly warming solution to patient warming that requires no consumables. With a 10-year lifespan - longer than most alternatives - it significantly reduces waste whilst lowering long-term costs.

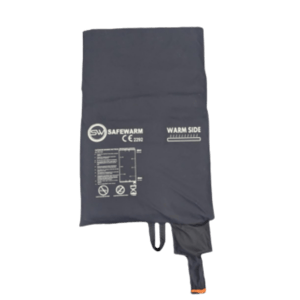

The polyurethane coating makes the mattress fully waterproof and easy to disinfect, whilst optional reusable covers allow fast patient turnaround without creating clinical waste.
CONDUCTIVE HEAT VS FORCED AIR
Conductive heating offers a quieter, cleaner and more efficient alternative to forced-air systems in operating theatres. The comparison below highlights key differences in infection risk, noise, compatibility and overall performance.
FEATURE
CONDUCTIVE HEAT
FORCED AIR
Infection Risk
Low (no airflow)
Higher (airflow across theatre)
Noise Level
Silent
Moderate noise (uses a blower unit)
Draping Compatibility
Excellent
Can obstruct surgical field
Reusability
Reusable (long life)
Single-use blankets
Operating Cost
Low (after initial purchase)
High (ongoing consumables)
Sustainability
Green (no waste)
Waste-generating
Temperature Delivery
Consistent, even
Variable

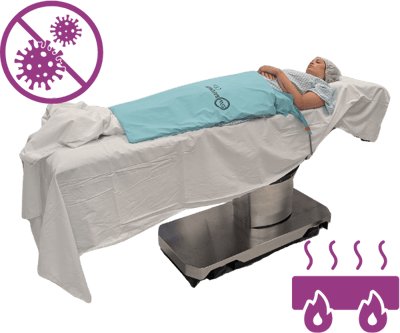

INFECTION CONTROL
The Safewarm warming pads are ideally suited for settings where strict infection control is essential. Unlike forced-air systems, the system delivers heat through conduction, avoiding air circulation that could disrupt sterile fields or spread airborne particles.
This makes it an excellent choice for orthopaedic operating theatres and plastic or reconstructive surgery environments, where maintaining sterility is critical.
DESIGNED TO BE SAFE
AUDIO-VISUAL ALARMS
Independent microprocessors within the mattress and controller will set off an audio-visual alarm if any faults are detected, allowing for prompt intervention.
X-RAY TRANSLUCENT
The carbon fibre material of the inner mattress allows X-rays to pass through, meaning patient temperatures can continue to be maintained during imaging procedures.
LOW VOLTAGE
Heat is generated with a protective low voltage of 24V, so that any risk of electric shock is mitigated.

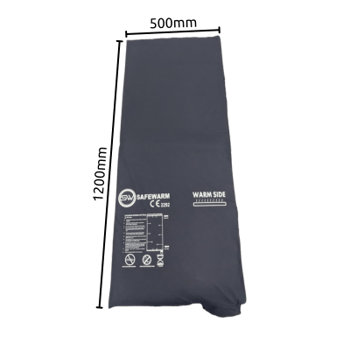

DIMENSIONS
WARMING MATTRESS
Warming Mattress
Dimensions (length x width x depth)
Power

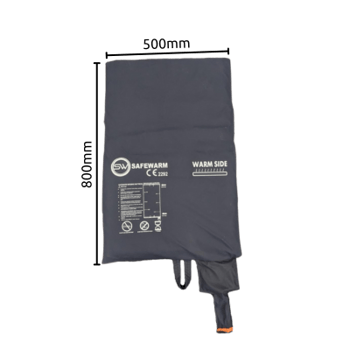

HMG-80MS
800mm x 500mm x 30mm
90 Watt
HMG-120MS
1200mm x 500mm x 30mm
135 Watt
HMG-150MS
1500mm x 500mm x 30mm
110 Watt
HMG-190MS
1900mm x 500mm x 30mm
145 Watt
HMG-80MS
HMG-120MS
HMG-150MS
HMG-190MS

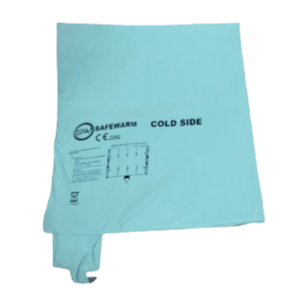

WARMING BLANKET
Warming Blanket
Dimensions (length x width)
Description

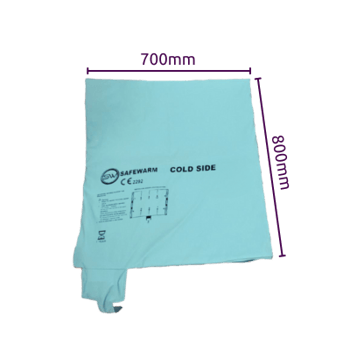

IM-80 B
800mm x 700mm
Paediatric. Small.

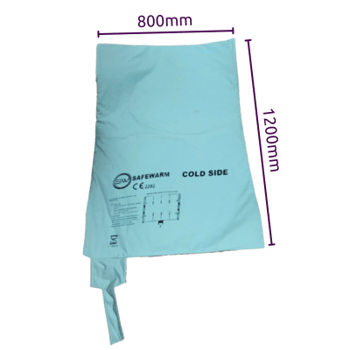

IM-120 B
1200mm x 800mm
Adult/Paediatric. Medium.
IM-150 B
1500mm x 800mm
Adult/Paediatric. Medium.
IM-180 B
1800mm x 800mm
Adult. Large.
IM-190 B
1900mm x 1000mm
Adult. Large.
IM-85 DB
850mm x 550mm (2 pads)
Adult/Paediatric. Double Blanket.

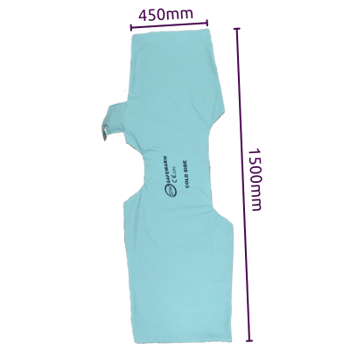

IM-150 BAS
1500mm x 450mm
Adult/Paediatric. Arm/Shoulder Blanket.
IM-180 BAS
1800mm x 450mm
Adult. Arm/Shoulder Blanket.
HMG-80B
HMG-120B
HMG-150BAS
STANDARD SPECIFICATION
If ordering the control unit as part of your Safewarm Patient Warming System, this will include the following as standard:
1 x Control unit
1 x Connection cable
If ordering a warming mattress as part of your Safewarm Patient Warming System, this will include the following as standard:
1 x Mattress (per each unit purchased)
1 x Reusable mattress cover (per each unit purchased)
If ordering a warming blanket as part of your Safewarm Patient Warming System, this will include the following as standard:
1 x Blanket (per each unit purchased)
1 x Reusable blanket cover (per each unit purchased)
OPTIONAL EXTRAS
Optional Extra
Product Code

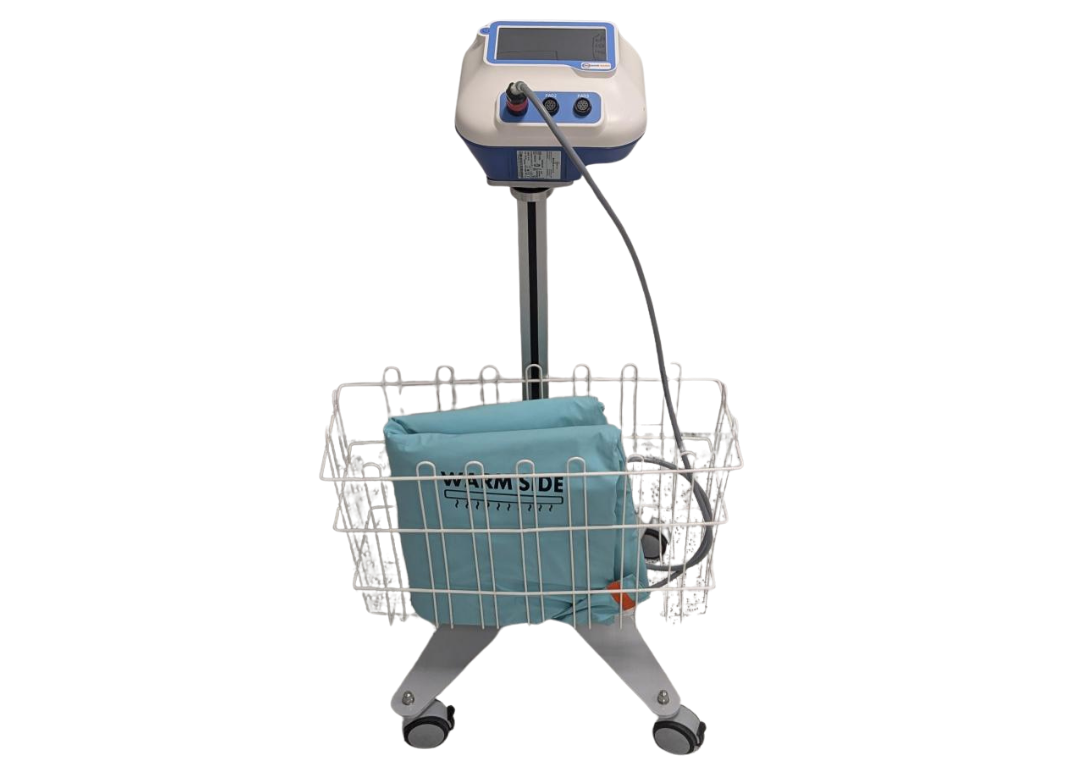

Mobile controller stand with basket
HMG-02
Extension cable (2.5m)
HMG-04
Controller support bracket for IV pole
HMG-03
Skin temperature probe (reusable, 1.5m cable)
HMG-11
Safewarm test device (calibration/maintenance of mattress/blanket)
HMG-10
Safewarm calibration test apparatus (test/calibration of control unit)
